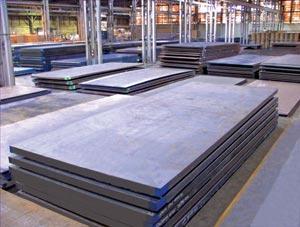

P275NL1 steel plate, P275NL1 steel mechanical properties

P275NL1 steel is a pressure vessel steel designed for low temperature use. This is done through the reduction of phosphorus and sulphur in the steel. We have one of Europe’s largest stocks of P275NL1 available for immediate dispatch . It is also one of the best as it relies extensively on material supplied by Dillinger Hutte whose steel is world famous for its ultra low phosphorous and sulphur content.

P275NL1 steel

P275NL1 steel specification:

Thickness: 5mm to 300mm,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm

P275NL1 steel Chemical analysis -% by mass*:

Grades

max

Si max

Mn.

max

min

Cr max

Cu max

Mo max

Ni max

Nb max

Ti max

max

P275NL1

0.16

0.4

0.80-1.50

0.03

0.015

0.012

0.02

0.3

0.08

0.5

0.05

0.03

0.05

P275NL1 steel mechanical properties:

Grade		P275NL1 Mechanical Property
Grade	Thickness	Yield	Tensile	Elongation	Impact Energy(KV J) min
P275NL1	mm	Min Mpa	Mpa	Min %	-20°	0°	+20°
	≤ 16	275	390-510	24	47	55	63
	16> to ≤35	275	390-510	24	47	55	63
	35> to ≤50	265	390-510	24	47	55	63
	50> to ≤70	255	390-510	24	47	55	63
	70> to ≤100	235	370-490	23	47	55	63
	100> to ≤150	235	350-470	23	47	55	63

The equivalent grade of P275NL1:

P275NL1 steel plate/ sheet is in EN 10028-3 standard. The equal material of P275NL1 steel is: DIN 17102 St E 285, BS1501 224Gr.400.

P275NL1 steel surface treatment: Shot blasting and painting or coated

Main application of P275NL1 steel is used to build boilers and pressure vessels such as petroleum, chemical industry, power plants.

Bebon is a P275NL1 steel supplier, we can offer High quality steel plate and pretreatment of the advanced equipment. If you are interested in 1 P275NL1 steel Production Process, P275NL1 equivalent steel, please contact us.
